Azure explained deep enough: Azure PaaS
Introduction
This is the third part of Azure mini-series Azure explained deep enough
Part1: Azure explained deep enough: learn and get certified
Part2: Azure explained deep enough: Containers
Part3: Azure explained deep enough: Azure PaaS <- this blog
Part4: Azure explained deep enough: Azure DevOps
Azure App Service is a fully managed service for building, deploying, and scaling your web apps, web APIs, and other server-side workloads. App Service is an Azure PaaS offering, PaaS stands for Platform as a Service.
PaaS Providers
There are other PaaS providers than Azure, each major Cloud Provider have their offering:
- GCP: Google App Engine
- AWS: Elastic Beanstalk
- Although not a “big” cloud provider, I like Digital Ocean’s App Platform
There are also interesting smaller PaaS providers
- Heroku was the first company to introduce a PaaS-like offering
- Rancher Epinio is still in the experimental phase but very promising PaaS offering
What are the benefits of PaaS?
Modern software infrastructure is pretty complicated, from VMs to containers. From monolithic applications to serverless, from on-prem to hybrid modes. Everything is more connected, IoT and edge requirements push the boundaries of what is considered possible every day! Technologies like WASM, RISC-V, Kubernetes, Machine Learning & AI, Quantum Computing, and many more will completely revolutionize how software is created, delivered, and personalized.
This is all great, but how should developers keep up with all the building and deployment options? How to easily monitor and operationalizing all those various workloads? That’s where PaaS comes in.
PaaS bridges the gap between the underlying hosting platforms and running workloads, by providing a good balance between opinionated defaults and configuration options.
In other words a good PaaS offering will be flexible enough to accommodate for different needs and workloads and intelligent enough to hide infrastructure complexity by providing smart abstraction layer to work with.
Choose where to host your micro(service)
Azure, like any other major cloud provider, offers a lot of services to choose from. Most often than not, the sheer number of options and services is just plain confusing. The below diagram guides you through the decision process and helps understand where PaaS offering is a good choice.
In general, if you have a workload that will be consumer-facing via HTTP(s), like a web page, web API, etc, Azure App Service is a good choice.

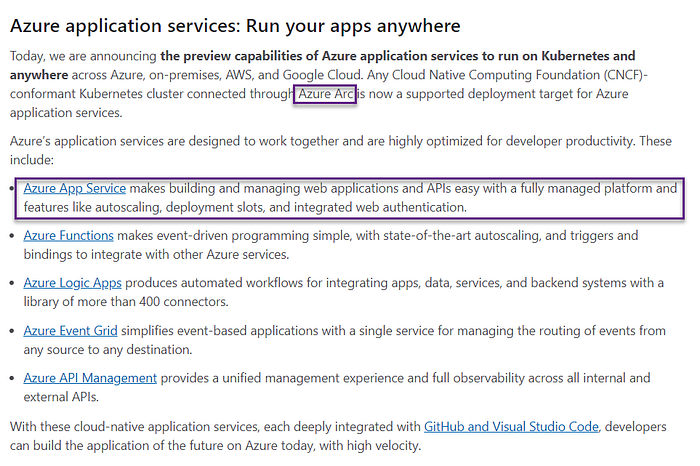

Other than standard hosting options, now it is possible to run App Service on Azure Arc enabled Kubernetes anywhere. This is a pretty interesting feature because it extends the Azure App Service control plane and runs it on top of Kubernetes, meaning that if you have App Services running in Azure already, you could run them for example on-prem on a Kubernetes cluster and still use Azure App Service abstraction as you would in Azure itself.
Choose App Service SKU plan
Finally, in order to run our App Service, we need to select an SKU (Stock Keeping Unit) plan that will define the capabilities of the underlying infrastructure.
Here we can decide how much CPU and RAM should our infrastructure have, what are the auto-scaling rules and other features, like support for custom certificates or custom domain names, etc.
for full list of available configuration options please refer to Azure Docs

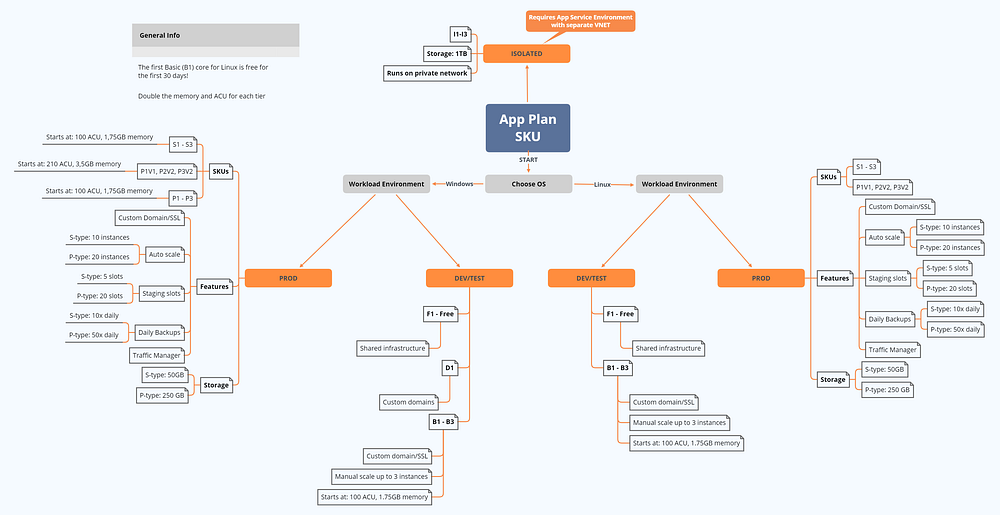

Since there is no good graphical representation helping us choose between SKUs (similar to the one helping us choose between hosting options for our service), I have created one:
Demo
We are going to deploy Azure infrastructure and use App Service with Azure Container Registry to deploy a sample web app running in a docker container.
Infrastructure
To set up our testing infrastructure, we will take advantage of the fact that Azure Cloud Shell comes with a pre-installed terraform.
You don’t need to be familiar with terraform, all commands will be provided, but remember always check scripts from the internet before executing. All scripts are part of the learning repository here.
Please feel free to fork the repository and make your own changes. One thing to note is that terraform state file will be generated once you start typing terraform commands. Terraform state file contains sensitive information that you do not want to commit to your repository. The .gitignore present in the terraform folder will exclude state files from being added to the repository, so please do not delete this file.
Login to the Azure portal and select Cloud Shell. Follow this tutorial to activate cloud shell if you are login for the first time on a fresh account.
Once you are in the cloud shell, make sure to select bash environment and follow the steps below.
# Clone the exercise repository
git clone https://github.com/ilearnazuretoday/create-app-service# Switch to right directory
cd create-app-service/terraform# Initialize terraform with Azure Provider
terraform init# Validate terraform scripts
terraform plan# Create infrastructure, confirm with "yes"
terraform apply
The above commands should create our Azure infrastructure and. Go ahead and copy the URL from terraform output and you should see a sample PWA web page from my Docker Hub registry.
Deploying the app
From here we have various options to play around with deploying a sample HTML page from the nginx-demo folder, replacing the app service container with another one, setting up CI/CD pipeline, etc. If you are interested, follow along with the instructions.
Retrieve login details to our Azure Container Registry so we can push an image with the sample web app
# Capture resource group name output from terraform into a variable
export RG_NAME=$(terraform output --raw resource_group)# Capture ACR name output from terraform into a variable
export ACR_NAME=$(terraform output --raw acr_name)# Capture app service name into a variable
export APP_NAME=$(terraform output --raw app_service_name)# Obtain user name for the ACR
export ACR_USERNAME=$(az acr credential show --resource-group $RG_NAME_ --name $ACR_NAME --query username)# Obtain password for the ACR
export ACR_PASSWORD=$(az acr credential show --resource-group $RG_NAME_ --name $ACR_NAME --query passwords[0].value)
Build image locally from Azure Cloud shell
Since docker daemon is not running in the cloud shell VM, we have to use az acr build command to build an image and deploy it to ACR.
# Navigate to folder with demo app
cd ../nginx-demo# Use az cli to build and upload container to ACR
az acr build --image nginx-demo:1.0 \
--registry $ACR_NAME \
--file Dockerfile .
Set newly pushed image for our App Service
Now we can set the image for our App Service. Please note that all those actions are done in an “imperative” way for educational purposes. In real-life scenarios, CI/CD pipelines would be set up to handle the flow of change and updates
az webapp config container set --name $APP_NAME \
--resource-group $RG_NAME \
--docker-custom-image-name nginx-demo:1.0 \
--docker-registry-server-url "https://$ACR_NAME.azurecr.io" \
--docker-registry-server-user $ACR_USERNAME \
--docker-registry-server-password $ACR_PASSWORDGive it a moment so that Azure can refresh the image and navigate to the same address, you should see an nginx demo page.
Destroy the Infrastructure
This step is IMPORTANT so that you will avoid unnecessary charges. Let’s remove the resources, it is very easy to do this with terraform.
# Navigate to folder with demo app
cd ../terraform# Destroy all resources, confirm with yes
terraform destroy
Conclusion
Azure PaaS, App Service is a very versatile and powerful service. We have learned when to use it, how to select the right SKU, finally how to deploy a sample workload following infrastructure as code practices.
